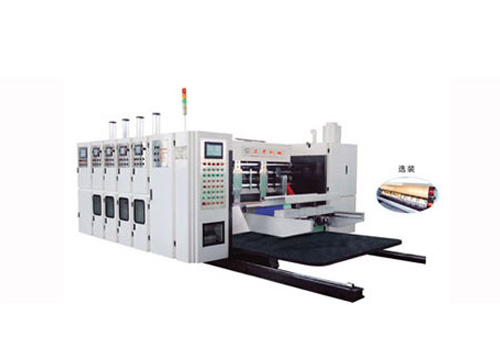

  • SYKM-B高速水墨印刷开槽机
    产品名称:

    SYKM-B高速水墨印刷开槽机

    产品描述:

    整机墙板采用抗振性能优良的铸铁材料,厚度达到60mm,保证了传动平稳,齿轮啮合准确;并由高精度加工中心一次制作而成,提高机器精度。安装时采用精准水平仪定位找正。

    详细信息

    整机性能特点:

    1、整机墙板采用抗振性能优良的铸铁材料,厚度达到60mm,保证了传动平稳,齿轮啮合准确;并由高精度加工中心一次制作而成,提高机器精度。安装时采用精准水平仪定位找正。

    2、所有传动轴、辊材质均为优质钢,高精度动平衡调整校正,使机器传送更平稳;所有传动轴、辊表面抛光镀硬铬,增加耐用度。

    3、全部传动齿轮采用优质低碳合金钢(20CrMnTi),齿宽达到60mm;磨齿加工。

    4、整机采用免键连接环,消除连接间隙,适合长期高速印刷。关键传动部位采用进口NSK精密轴承,使用寿命长。

    5、齿轮传动采用喷淋式循环润滑供油系统,双油泵设计,循环供油,油平面自动平衡,无需定期放油,不会造成溢油现象。

    6、整机各机组采用电动分合,气动锁紧,分开时自动刹车,确保印刷位置不错位。(注:该机每组配备行走电机单独移动)

    7、整机移位时持续响铃警示,确保操作人员安全。

    8、PLC、多功能触摸屏变频控制各印刷单元及模切相位调整,显示直观准确,操作简便。

    9、整机各机组之间采用上方走线;元件采用国内外知名品牌:如西门子接触器、台湾复盛空压机、武汉金长江隔膜泵、陕西咸阳超越离合器、哈尔滨轴承。

    主要技术参数Main Technical parameter:

    Function of the machine:

    1、Cast iron of good anti-seismic performance  with the thickness of 60mm is used for the wall of the machine to ensure steady transmission and accurate joint of the gears。 It is processed and finished by the high precision machining center at a time,to increase the accuracy。 The accurate level gauge is used to adjust when installing the machine。

    2、Good quality of steel is used for all the transmission shafts and rolls, high precision dynamic balance adjustment to ensure the steady transmission; All the transmission shafts and rolls are polished and plated hard chrome to make sure of the durability。

    3、All the driving gears adopt high quality low carbon alloy steel(20CrMnTi), the teeth are ground and the toothwidth reach 60mm。

    4、Conect collars with no bonds are used for the whole machine to eliminate clearance, fit for high speed printing 。 And for the key transmitting parts, the imported NSK insert bearings are used to ensure long using life

    5、Spraying circulation is adopted to lubricate the gears, two oil pumps, and circulating oil supply, self-poise of the level of oil。 There is no need to let out the oil, and no leaking of oil will happen。

    6、Electric separation and unite of the sections of the machine。 Pneumatic lock , auto brake when separate to guarantee no printing dislocation 。

    7、The alarm rings continuously when the machine moves to ensure safety of the workers。

    8、PLC,multifunction touching screen frequency converter control of the phase adjustment in the printing section, die-cutting section。 Easy to operate and control。

    9、The wire between the units of the whole machine is arranged at the top。The devices are all of well-known brand。 Siemens contactor, TaiWan Fu Sheng aircompressor, WuHan Yongts River diaphragm pump,ShanXi XianYang ChaoYue clutch, Harbin rolling bearing。

    色组 Color Group 可按用户需要配置 Everyting can be quipped accord to users' needs
    印刷用纸 Printing Paper A、B、C、A/B、B/C和A/B/C瓦楞纸板(C最大间隙13mm)
    机械速度 Economy speed 100片/分(sheets/min)
    印刷滚筒直径 Printing Roller Dia φ300 φ400 φ480 φ530
    最小过纸高度 Min.paper size 260 300 350 400
    印刷宽度 Printing width 1800mm-3000mm(用户定制)
    标准印刷厚度 Standard printing Plate Thickness 4-9mm
    开槽宽度 Slot width 7mm(可定制)
    最小开槽近距 Min.Slot Space 正刀160×160×160×160
    反刀300×60×300×60
