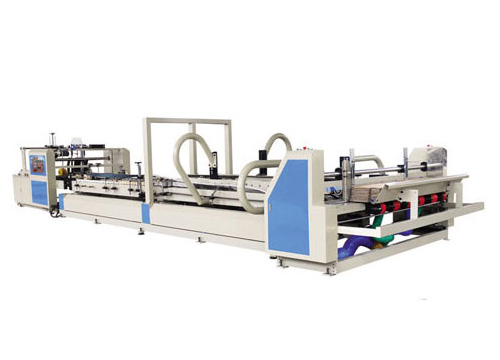

  • 全自动粘箱机
    产品名称:

    全自动粘箱机

    产品描述:

    全自动粘箱机由真空送纸部,涂胶折叠部和计数堆积输出部三部分组成。采用变频调速,标配PLC触摸屏控制,操作简单可靠,平均粘箱速度150张/分钟,高速节能,节省人工成本。

    详细信息

    全自动粘箱机整机构成特点:

    全自动粘箱机由真空送纸部,涂胶折叠部和计数堆积输出部三部分组成。采用变频调速,标配PLC触摸屏控制,操作简单可靠,平均粘箱速度150张/分钟。高速节能,节省人工成本。

    The whole machine features:

    AFG full automatic gluing and folding machine and it consist of vacuum adsorption feeding part,gluing and folding part and stacking and couter part。It adopts frequency to change speed and controlled by standard PLC touch screen,easy operation and reliable,the average speed can up to 150 sheets/min。High speed and energy-saving and save labor。

    送纸部特色:

    1、吸风进纸及高度可调的后规能更好的适应弯曲纸板。

    2、采用高档电磁离合器及电磁刹车系统,使送纸部可单独控制进纸,操作简便可靠。

    3、压线轮可调,适合纸板厚度2-8mm。

    4、二次压痕机构,可对压痕质量不佳的纸板进行二次压痕。

    涂胶折叠部特色:

    1、结构简单可靠的电动胶量可控制装置,清洗方便。

    2、采用不锈钢涂胶轮,涂胶均匀,节省胶量。

    3、采用进口耐磨橡胶皮带输送纸板。

    4、纸板矫正装置和压线装置,压线轮可调 。

    Apply gluing and folding part:

    1、It is with easy and controllable device to control gluing amount and clean easily。

    2、Stainless gluing wheel,apply gluing evenly and save gluing amount。

    3、It adopts imported durable rubber and feeding cardboard by belt。

    4、It is with correction and pressing line device and adjustable pressing line wheel。

    计数堆积输出部特色:

    1、计数堆码原理简单可靠。

    2、采用数字控制,操作可靠,不停机输入数据,自动计数,准确输出。

    3、具有纠偏功能,偏差可调。

    4、计数推出采用气动方式,动作准确,快速。

    Packing and output part:

    1、Principle of count to stacking is easy and reliable。

    2、It is controlled by digital and easy operation,keep working to input data,count automatically and output accurate。

    3、It has function with correction tolerance and the tolerance can be adjustable。

    4、Output counter adopts pneumatic and accurate movement and fast。

    Feeding part:

    1、It can suitable for bend cardboard after adjusting height of cardboard feeding。

    2、The electromagnetism clutch in high quality,it can make the feeding part control paper inside alone and easy operation and reliable。

    3、Pressing line wheel is adjusting,the thickness of cardboard can be 2-8mm。

    4、It is with twice creasing structure,it can process the cardboard in low quality。

    型号 Model 2400 2500
    最大过纸Max. Feeding size 900×2200 1200×2500
    最小过纸Min. Feeding size 300×900 300×900
    外形尺寸Overall size L11000 W3000 H1600 L12500 W3200 H1600
    整机重量Machine weight 5500Kg 6500Kg
    电源要求Power 11.5KW 380V 50HZ 14.5KW 380V 50HZ
    适应纸板厚度Thickness of cardboard 三层、五层瓦楞纸板It suitable for 3-ply and 5-plyIt suitable for 3-ply and 5-ply
    控制方式Control style PLC触摸屏
